Automatic Diaphragm Water Pump, 3.0 GPM / 11.3 LPM, 12V DC
HIGH PERFORMANCE: Water Diaphragm Self Priming Pump provides reliable performance in high water flow and moderate pressure applications. Smooth, quiet operation and can run dry without damage. Material: EPDM Valves - Santoprene Diaphragm.

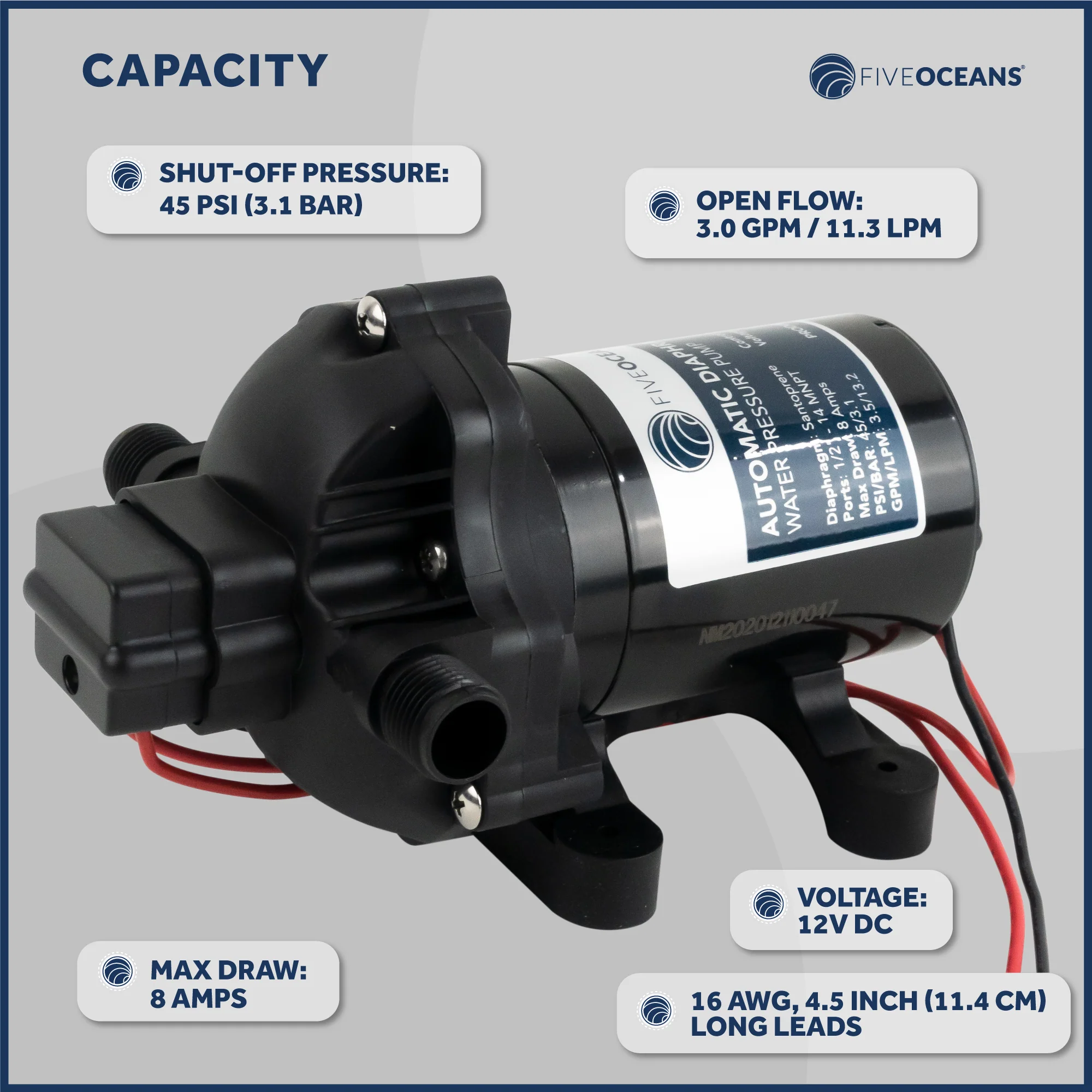

CAPACITY: Open Flow: 3.0 GPM / 11.3 LPM. Shut-off Pressure: 45 PSI (3.1 bar) with Priming Capabilities of 6 Vertical Feet (1.8m) suction lift. Ports: 1/2 inch - 14 MNPT. Voltage: 12V DC. Max Draw: 8 Amps. Max Recommended Temperature: 140 Degree F (60 Degree C).

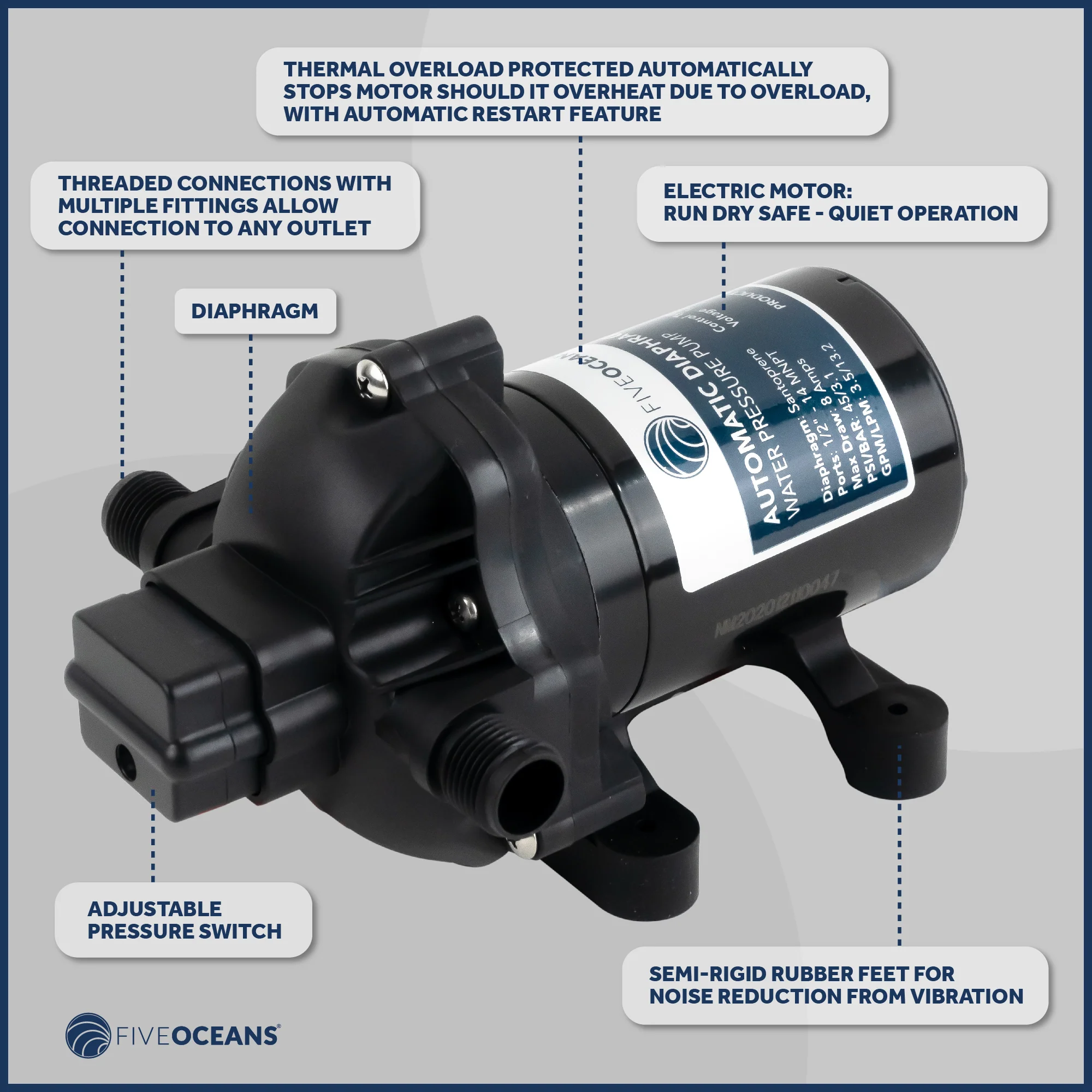

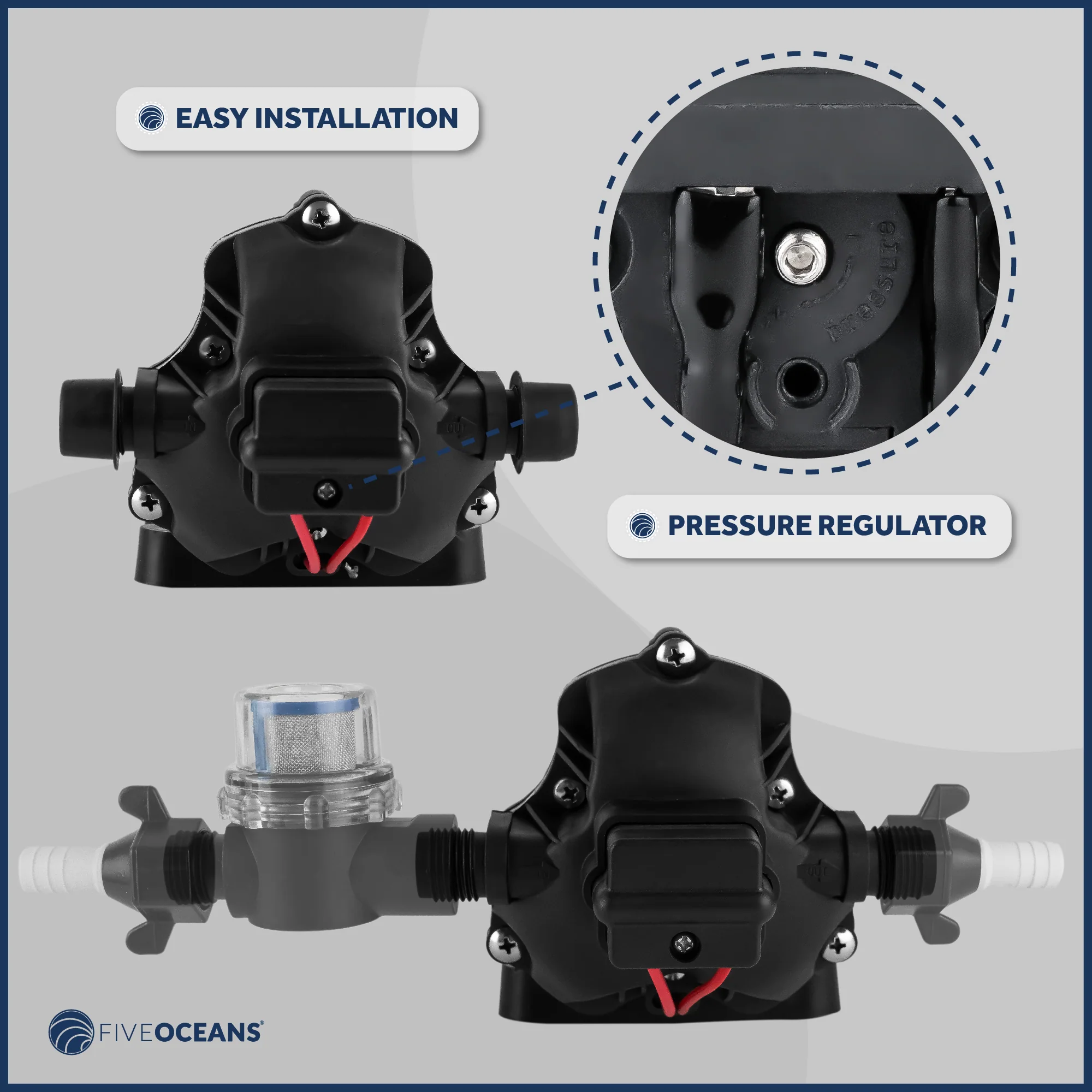

FEATURES: This automatic demand water system pump has a built-in adjustable pressure switch, which automatically starts and stops when the faucet is opened and closed. Thermal Overload Protected Automatically Stops motor.

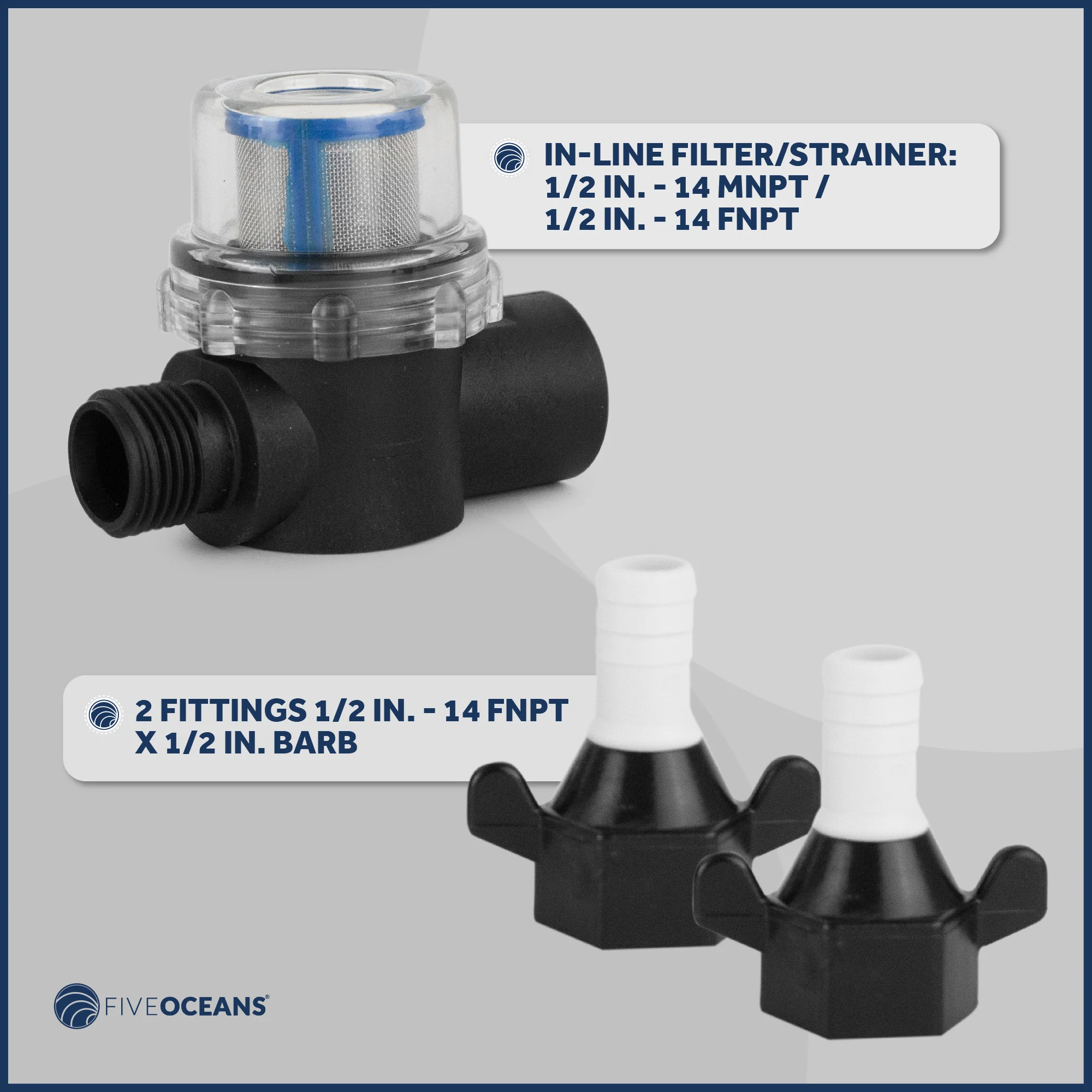

INCLUDES: 2 Fittings - 1/2 inch - 14 FNPT0 x 1/2 inch Barb and One (1) Inline Filter / Strainer - 1/2 inch - 14 MNPT / 1/2 inch - 14 FNPT.

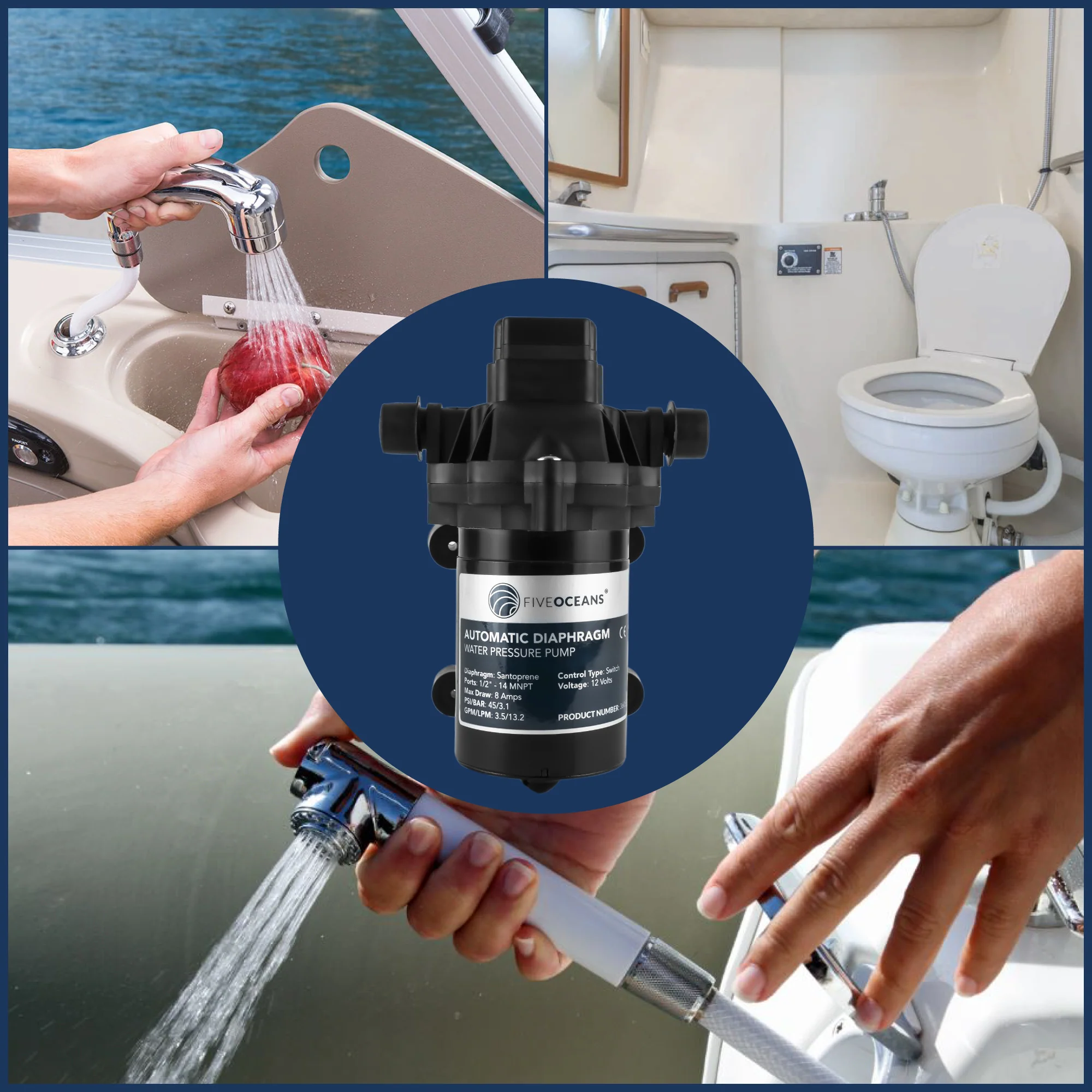

APPLICATIONS: Marine, RV, Agricultural Spraying, General Industrial, Filtration, Beverage Processing, and Solar Water Systems.
PRODUCT NUMBER: FO-3605
CAPACITY: Open Flow: 3.0 GPM / 11.3 LPM. Shut-off Pressure: 45 PSI (3.1 bar) with Priming Capabilities of 6 Vertical Feet (1.8m) suction lift. Ports: 1/2 inch - 14 MNPT. Voltage: 12V DC. Max Draw: 8 Amps. Max Recommended Temperature: 140 Degree F (60 Degree C).
FEATURES: This automatic demand water system pump has a built-in adjustable pressure switch, which automatically starts and stops when the faucet is opened and closed. Thermal Overload Protected Automatically Stops motor.
INCLUDES: 2 Fittings - 1/2 inch - 14 FNPT0 x 1/2 inch Barb and One (1) Inline Filter / Strainer - 1/2 inch - 14 MNPT / 1/2 inch - 14 FNPT.
APPLICATIONS: Marine, RV, Agricultural Spraying, General Industrial, Filtration, Beverage Processing, and Solar Water Systems.
PRODUCT NUMBER: FO-3605
Product Video:
$99.00
Automatic Diaphragm Water Pump, 3.0 GPM / 11.3 LPM, 12V DC—
$99.00
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HIGH PERFORMANCE: Water Diaphragm Self Priming Pump provides reliable performance in high water flow and moderate pressure applications. Smooth, quiet operation and can run dry without damage. Material: EPDM Valves - Santoprene Diaphragm.
CAPACITY: Open Flow: 3.0 GPM / 11.3 LPM. Shut-off Pressure: 45 PSI (3.1 bar) with Priming Capabilities of 6 Vertical Feet (1.8m) suction lift. Ports: 1/2 inch - 14 MNPT. Voltage: 12V DC. Max Draw: 8 Amps. Max Recommended Temperature: 140 Degree F (60 Degree C).
FEATURES: This automatic demand water system pump has a built-in adjustable pressure switch, which automatically starts and stops when the faucet is opened and closed. Thermal Overload Protected Automatically Stops motor.
INCLUDES: 2 Fittings - 1/2 inch - 14 FNPT0 x 1/2 inch Barb and One (1) Inline Filter / Strainer - 1/2 inch - 14 MNPT / 1/2 inch - 14 FNPT.
APPLICATIONS: Marine, RV, Agricultural Spraying, General Industrial, Filtration, Beverage Processing, and Solar Water Systems.
PRODUCT NUMBER: FO-3605
CAPACITY: Open Flow: 3.0 GPM / 11.3 LPM. Shut-off Pressure: 45 PSI (3.1 bar) with Priming Capabilities of 6 Vertical Feet (1.8m) suction lift. Ports: 1/2 inch - 14 MNPT. Voltage: 12V DC. Max Draw: 8 Amps. Max Recommended Temperature: 140 Degree F (60 Degree C).
FEATURES: This automatic demand water system pump has a built-in adjustable pressure switch, which automatically starts and stops when the faucet is opened and closed. Thermal Overload Protected Automatically Stops motor.
INCLUDES: 2 Fittings - 1/2 inch - 14 FNPT0 x 1/2 inch Barb and One (1) Inline Filter / Strainer - 1/2 inch - 14 MNPT / 1/2 inch - 14 FNPT.
APPLICATIONS: Marine, RV, Agricultural Spraying, General Industrial, Filtration, Beverage Processing, and Solar Water Systems.
PRODUCT NUMBER: FO-3605
