Windlass Kit Atlantic 900 Series Horizontal, 900W, 12V, with 125' Galvanized Steel Chain
COMPLETE BOAT WINDLASS ANCHOR KIT - Includes a powerful Atlantic 900W Horizontal Windlass, 125 Ft of 5/16" HT G4 galvanized anchor chain, and a heavy-duty 316 stainless steel anchor swivel.
ALL-CHAIN CONFIGURATION FOR OPTIMAL WINDLASS PERFORMANCE - A full chain setup provides superior grip on the gypsy, minimizes rope slippage, and ensures smoother operation and maximum efficiency when deploying or retrieving your anchor.

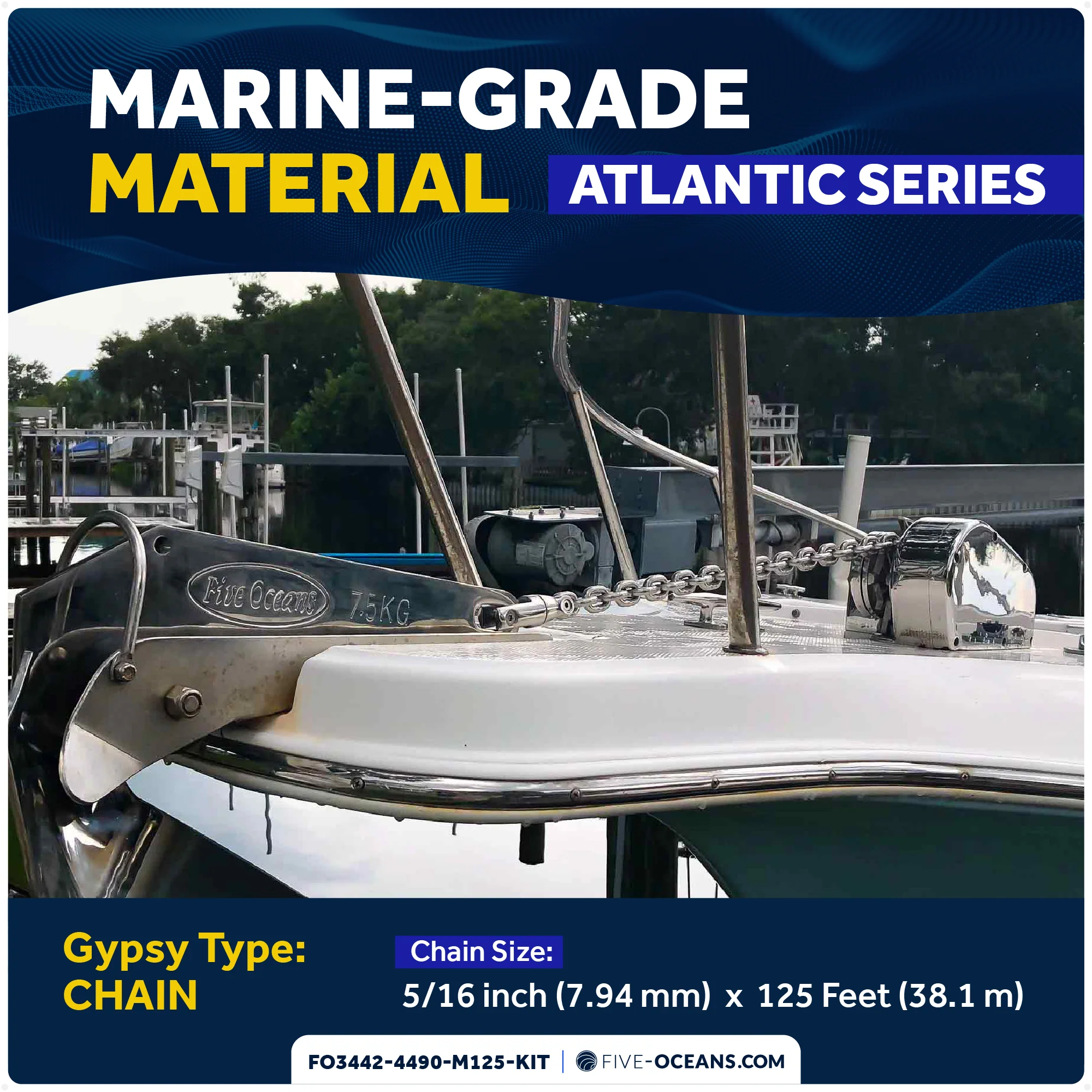

MARINE-GRADE DURABILITY - Designed with anodized 316 stainless steel housing and hot-dipped galvanized chain, this kit ensures maximum corrosion resistance and reliable performance in saltwater conditions.
HIGH LOAD CAPACITY & PERFORMANCE - Windlass delivers 1650 lb max pull, chain supports 2380.9 lb maximum working load, and swivel handles up to 2315 lb working load. Built for strength and safety.
EASY INSTALLATION FOR BOATS 20 FT TO 45 FT - On-deck horizontal windlass with complete mounting hardware and template. Perfect for sailboats, yachts, fishing boats, and recreational vessels.
SECURE & TANGLE-FREE ANCHORING - The swivel prevents twisting of the rope and chain while allowing 360 degree rotation, providing smooth anchor retrieval and safer docking experience.

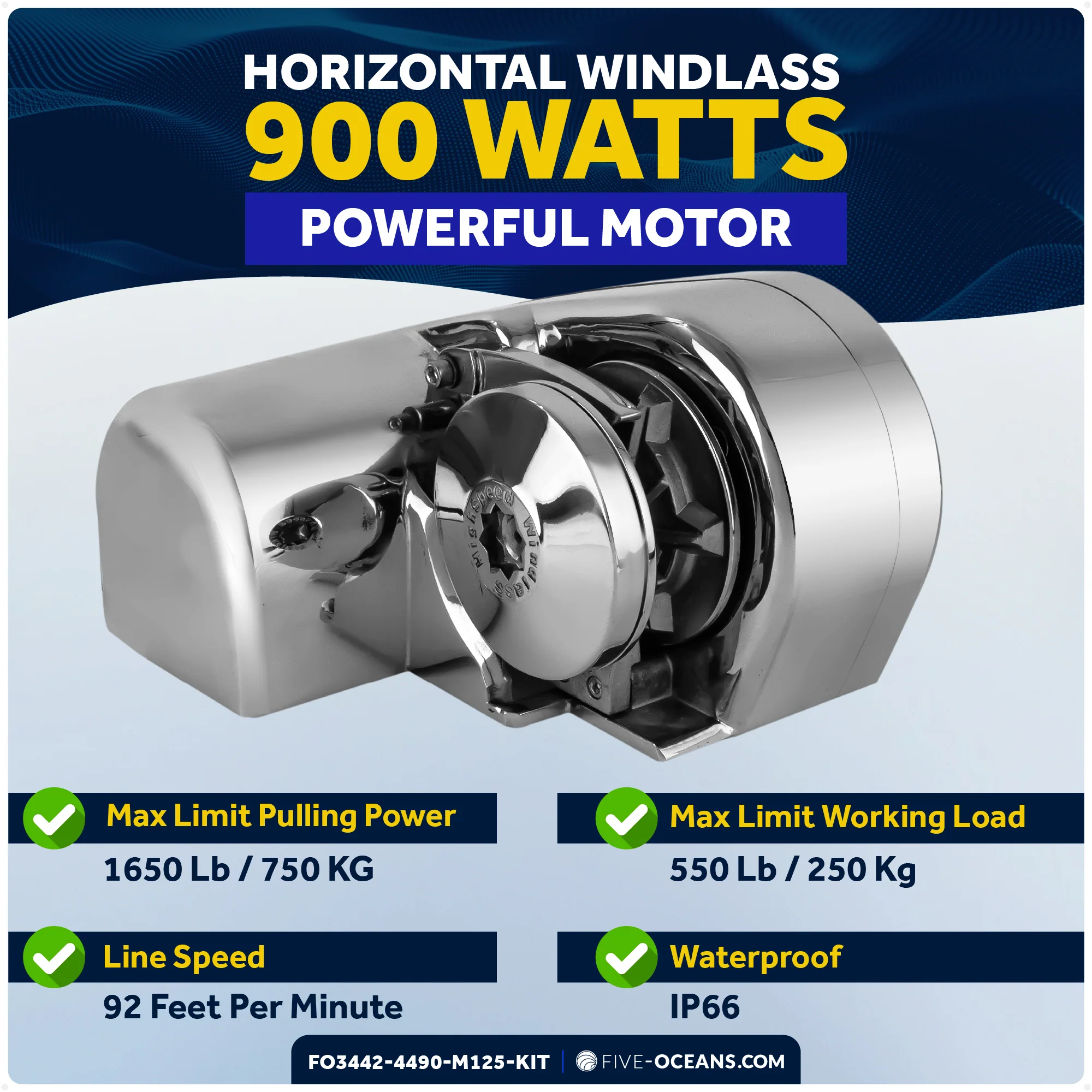

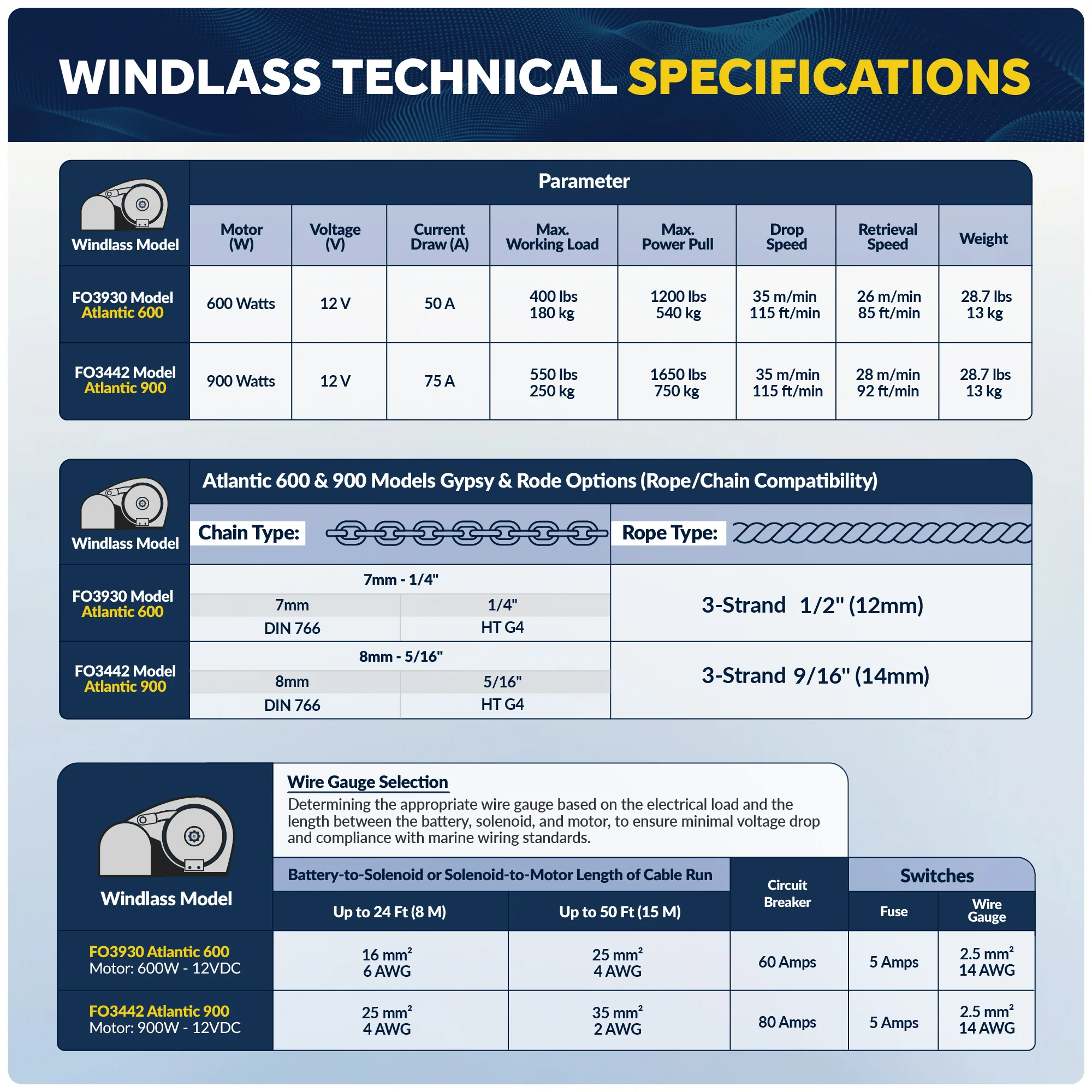

WINDLASS TECHNICAL SPECIFICATIONS:
Motor Power: 900 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1650 Lb / 750 Kg
Pulling Power: 550 Lb / 250 Kg
Maximum Limit Working Load: 550 Lb / 250 Kg
Working Load: 176 Lb / 80 Kg
Drop Speed: 35 m / min (115 Ft / min)
Retreival Speed: 26 m / min (92 Ft / min)
Current Draw: 75 Amps
Circuit Breaker: 80 Amps
Dual Gypsy: Chain and Rope
Chain: 5/16 Inch (8 mm) HT G4
Rope: 9/16 Inch (14mm) - 3 Strand

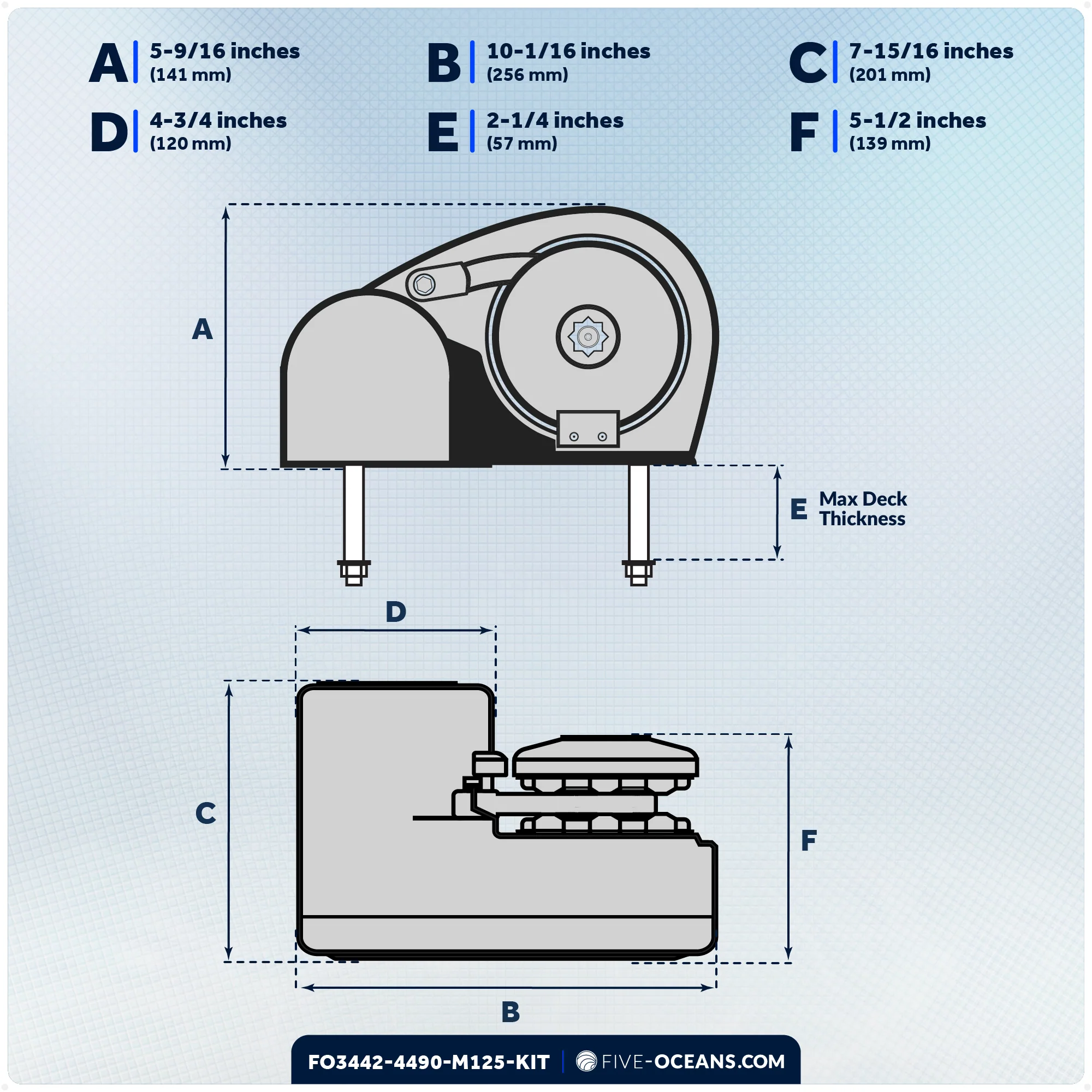

Max deck thickness up to 2-1/4" (57mm)
PRODUCT NUMBER: FO3442-4490-M125-KIT
ALL-CHAIN CONFIGURATION FOR OPTIMAL WINDLASS PERFORMANCE - A full chain setup provides superior grip on the gypsy, minimizes rope slippage, and ensures smoother operation and maximum efficiency when deploying or retrieving your anchor.
MARINE-GRADE DURABILITY - Designed with anodized 316 stainless steel housing and hot-dipped galvanized chain, this kit ensures maximum corrosion resistance and reliable performance in saltwater conditions.
HIGH LOAD CAPACITY & PERFORMANCE - Windlass delivers 1650 lb max pull, chain supports 2380.9 lb maximum working load, and swivel handles up to 2315 lb working load. Built for strength and safety.
EASY INSTALLATION FOR BOATS 20 FT TO 45 FT - On-deck horizontal windlass with complete mounting hardware and template. Perfect for sailboats, yachts, fishing boats, and recreational vessels.
SECURE & TANGLE-FREE ANCHORING - The swivel prevents twisting of the rope and chain while allowing 360 degree rotation, providing smooth anchor retrieval and safer docking experience.
WINDLASS TECHNICAL SPECIFICATIONS:
Motor Power: 900 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 1650 Lb / 750 Kg
Pulling Power: 550 Lb / 250 Kg
Maximum Limit Working Load: 550 Lb / 250 Kg
Working Load: 176 Lb / 80 Kg
Drop Speed: 35 m / min (115 Ft / min)
Retreival Speed: 26 m / min (92 Ft / min)
Current Draw: 75 Amps
Circuit Breaker: 80 Amps
Dual Gypsy: Chain and Rope
Chain: 5/16 Inch (8 mm) HT G4
Rope: 9/16 Inch (14mm) - 3 Strand
Max deck thickness up to 2-1/4" (57mm)
PRODUCT NUMBER: FO3442-4490-M125-KIT
