Vertical Capstan Windlass 900W, 12V - Arctic Series
APPLICATIONS: Vertical Mooring Rope Capstan Built to aid in docking and mooring. Five Oceans Mooring Capstan provides operators full control over the mooring process.
HIGH-PERFORMANCE MOTOR: The High-Power 900 Watts provides a maximum pulling power of 396 lb (180 kg) and a maximum working load of 80 Lb / 36 Kg. Maximum line speed (15m/min)/(49ft/min).

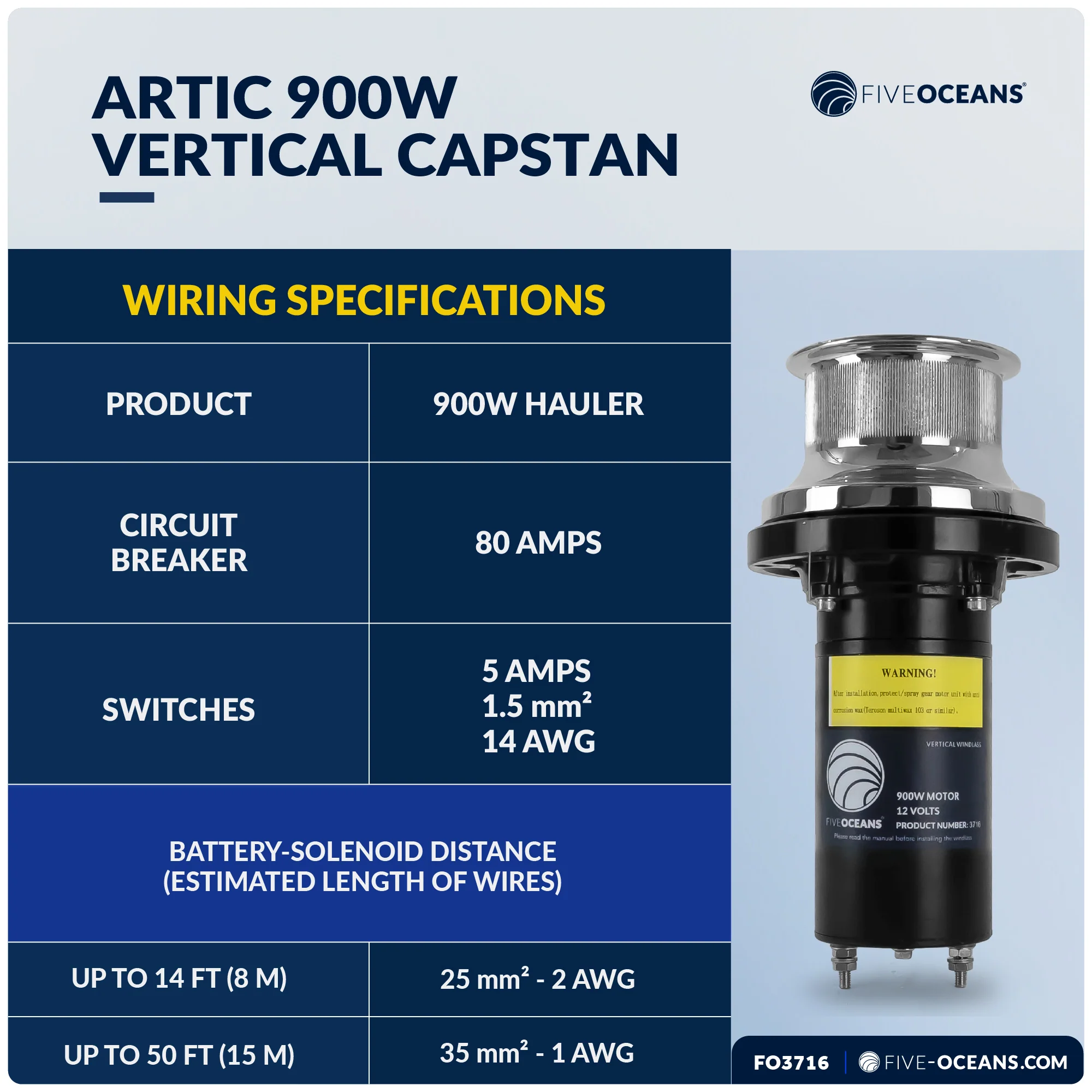

CAPSTAN MODEL: Artic 900 Series. Vertical Windlass. Motor Supply Voltage: 12V. Motor Power: 900 Watts. Current draw(A): 50 Amps. Max current draw(A): 75Amps. Include an 80A Circuit Breaker and a Foot Switch, Owner Manual, Mounting Hardware, and Mounting Template.

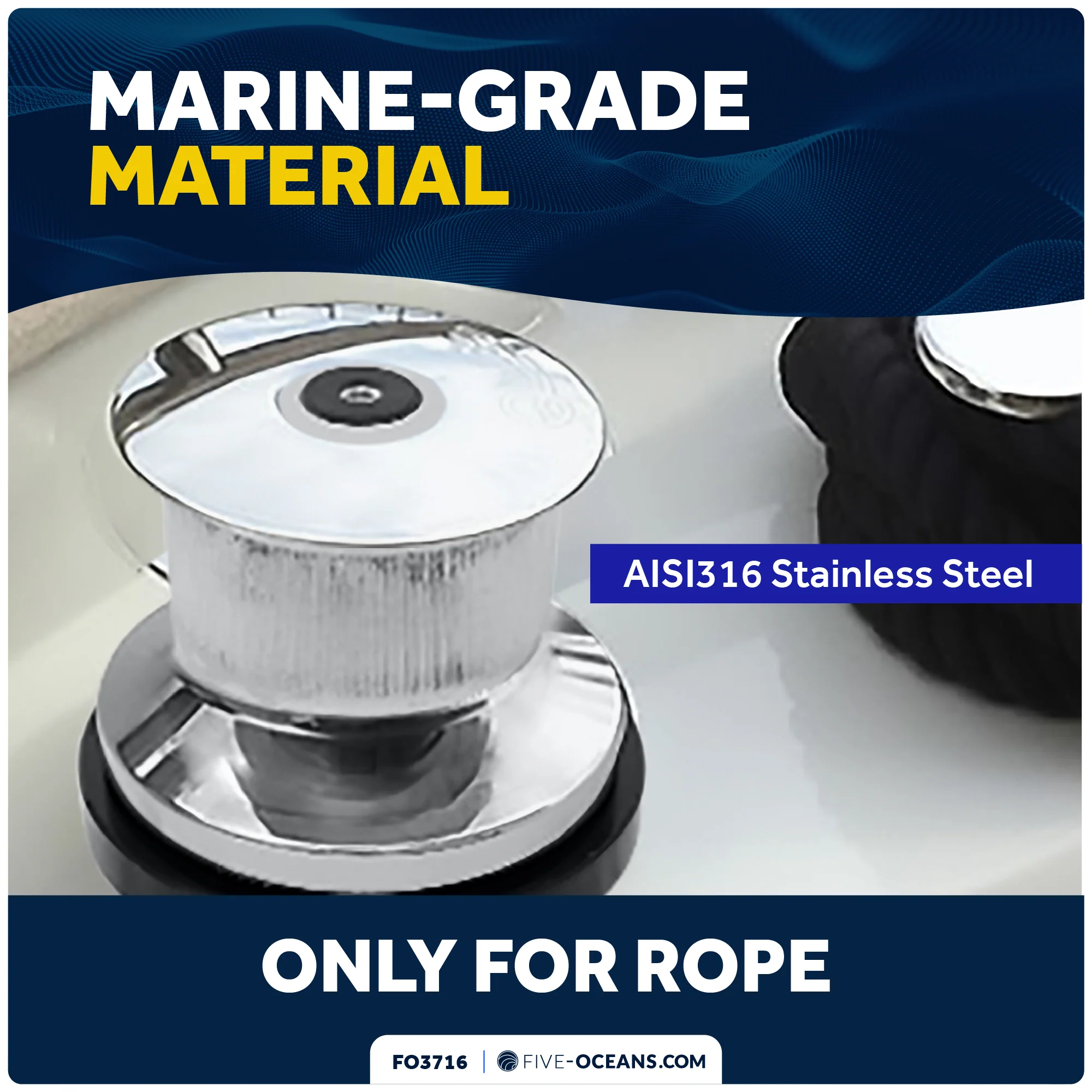

MARINE-GRADE DURABLE MATERIALS: All above-deck components are marine-grade 316 stainless Steel. All Below-deck components, motor, and gearbox, are made by hot forging and they can withstand the high-load strain.
VERTICAL CAPSTAN INSTALLATION: Under-Deck installation. 4 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. For Use with rope only.
PRODUCT NUMBER: FO-3716
HIGH-PERFORMANCE MOTOR: The High-Power 900 Watts provides a maximum pulling power of 396 lb (180 kg) and a maximum working load of 80 Lb / 36 Kg. Maximum line speed (15m/min)/(49ft/min).
CAPSTAN MODEL: Artic 900 Series. Vertical Windlass. Motor Supply Voltage: 12V. Motor Power: 900 Watts. Current draw(A): 50 Amps. Max current draw(A): 75Amps. Include an 80A Circuit Breaker and a Foot Switch, Owner Manual, Mounting Hardware, and Mounting Template.
MARINE-GRADE DURABLE MATERIALS: All above-deck components are marine-grade 316 stainless Steel. All Below-deck components, motor, and gearbox, are made by hot forging and they can withstand the high-load strain.
VERTICAL CAPSTAN INSTALLATION: Under-Deck installation. 4 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. For Use with rope only.
PRODUCT NUMBER: FO-3716
$789.00
Vertical Capstan Windlass 900W, 12V - Arctic Series—
$789.00
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
APPLICATIONS: Vertical Mooring Rope Capstan Built to aid in docking and mooring. Five Oceans Mooring Capstan provides operators full control over the mooring process.
HIGH-PERFORMANCE MOTOR: The High-Power 900 Watts provides a maximum pulling power of 396 lb (180 kg) and a maximum working load of 80 Lb / 36 Kg. Maximum line speed (15m/min)/(49ft/min).
CAPSTAN MODEL: Artic 900 Series. Vertical Windlass. Motor Supply Voltage: 12V. Motor Power: 900 Watts. Current draw(A): 50 Amps. Max current draw(A): 75Amps. Include an 80A Circuit Breaker and a Foot Switch, Owner Manual, Mounting Hardware, and Mounting Template.
MARINE-GRADE DURABLE MATERIALS: All above-deck components are marine-grade 316 stainless Steel. All Below-deck components, motor, and gearbox, are made by hot forging and they can withstand the high-load strain.
VERTICAL CAPSTAN INSTALLATION: Under-Deck installation. 4 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. For Use with rope only.
PRODUCT NUMBER: FO-3716
HIGH-PERFORMANCE MOTOR: The High-Power 900 Watts provides a maximum pulling power of 396 lb (180 kg) and a maximum working load of 80 Lb / 36 Kg. Maximum line speed (15m/min)/(49ft/min).
CAPSTAN MODEL: Artic 900 Series. Vertical Windlass. Motor Supply Voltage: 12V. Motor Power: 900 Watts. Current draw(A): 50 Amps. Max current draw(A): 75Amps. Include an 80A Circuit Breaker and a Foot Switch, Owner Manual, Mounting Hardware, and Mounting Template.
MARINE-GRADE DURABLE MATERIALS: All above-deck components are marine-grade 316 stainless Steel. All Below-deck components, motor, and gearbox, are made by hot forging and they can withstand the high-load strain.
VERTICAL CAPSTAN INSTALLATION: Under-Deck installation. 4 Standard 5/16 Inch (8mm) thread mounting studs, washers, and nuts supplied. For Use with rope only.
PRODUCT NUMBER: FO-3716
