Windlass Kit - Pacific 1500 Series Vertical, 1500W, 12V, with Anchor Rode Stainless Steel Chain & Swivel
COMPLETE PACIFIC 1500 SERIES WINDLASS ANCHOR KIT: Includes a Pacific 1500W vertical windlass (12V), 135A circuit breaker, 3-wire solenoid, up/down foot switch, rocker switch, 250 ft x 5/8" 3-strand nylon and 20 ft x 3/8" stainless steel HT G4 chain anchor rode, 3/8" stainless steel screw pin bow shackle, multi-directional anchor double swivel connector, manual top-cap handle, mounting hardware, and template for easy installation.
HIGH-PERFORMANCE 900W MOTOR: Delivers a maximum limit pulling power of 2645 Lb / 1200 Kg and a maximum limit working load of 1070 Lb / 485 Kg. IP66 waterproof rating ensures durability in harsh marine environments. Perfect for reliable anchoring on small to mid-sized boats.
SINGLE GYPSY FOR ROPE AND CHAIN: Seamlessly manages 3/8" HT G4 chain and 5/8" 3-strand nylon rope with a spring-loaded tension arm for smooth operation. Compatible with custom anchor rodes to meet your specific boating needs.

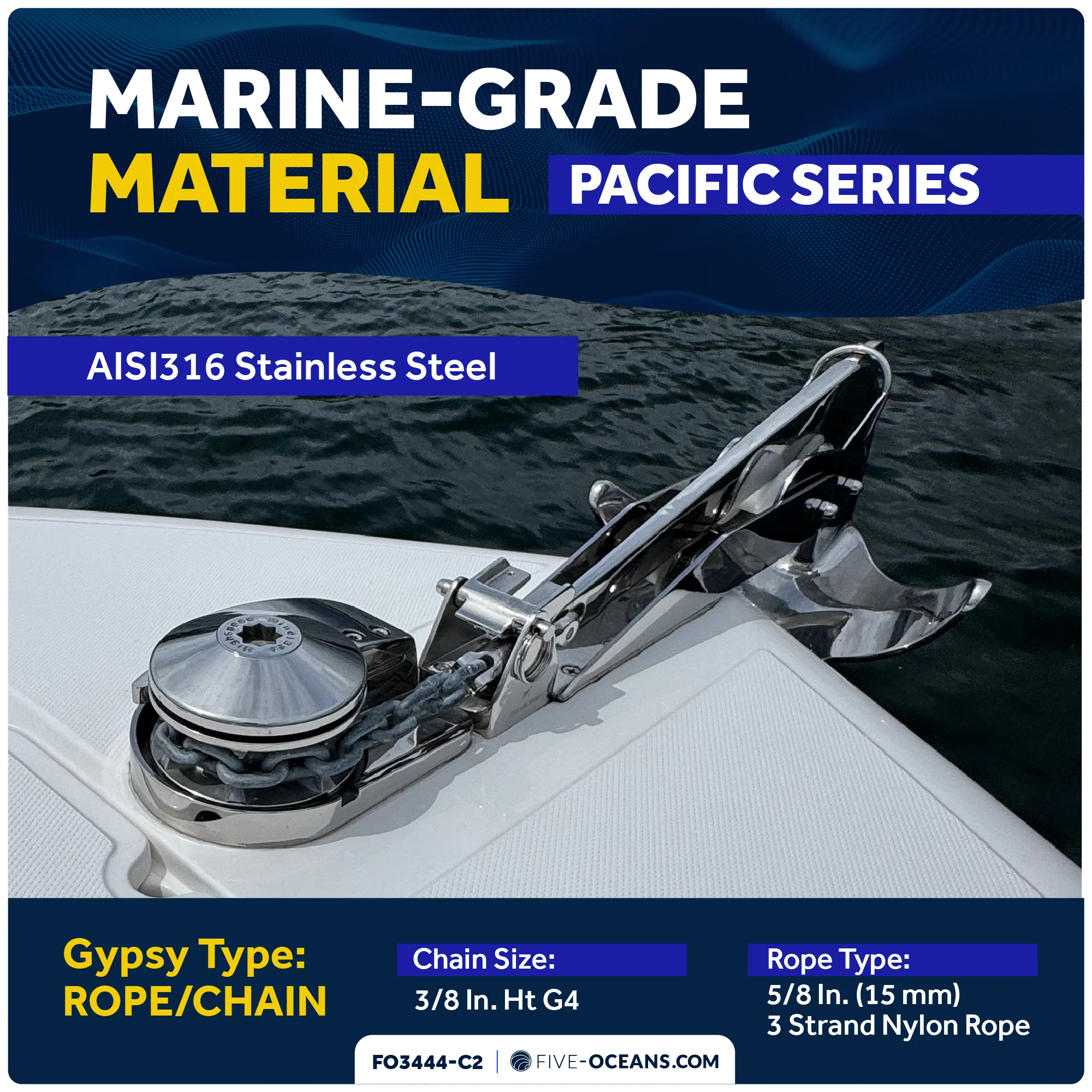

MARINE-GRADE DURABILITY: Windlass constructed with polished and anodized 316 stainless steel housing and hot-forged components to withstand high-load strain and corrosion. Built for long-lasting performance in saltwater conditions.
VERTICAL WINDLASS INSTALLATION: Under-deck setup with 4 standard 5/16" (8mm) mounting studs, washers, and nuts included. Supports max deck thickness up to 2" (50mm). Vertical rotation minimizes above-deck space, placing the motor and gearbox in the chain locker. Recommended 600W windlass for boats 40-65 ft, depending on vessel design and displacement.
WINDLASS TECHNICAL SPECIFICATIONS:
Motor Power: 1500 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 2645 Lb / 1200 Kg
Maximum Limit Working Load: 1067 Lb / 485 Kg
Working Load: 352 Lb / 160 Kg
Drop Speed: 40 m / min (131 Ft / min)
Retrieval Speed: 16 m / min (52 Ft / min)
Current Draw: 125 Amps
Circuit Breaker: 135 Amps
Dual Gypsy: Chain and Rope
Chain: 3/8 Inch (14mm) - 3 Strand
Rope: 5/8 Inch HT G4
PRODUCT NUMBER: 3444-C2
HIGH-PERFORMANCE 900W MOTOR: Delivers a maximum limit pulling power of 2645 Lb / 1200 Kg and a maximum limit working load of 1070 Lb / 485 Kg. IP66 waterproof rating ensures durability in harsh marine environments. Perfect for reliable anchoring on small to mid-sized boats.
SINGLE GYPSY FOR ROPE AND CHAIN: Seamlessly manages 3/8" HT G4 chain and 5/8" 3-strand nylon rope with a spring-loaded tension arm for smooth operation. Compatible with custom anchor rodes to meet your specific boating needs.
MARINE-GRADE DURABILITY: Windlass constructed with polished and anodized 316 stainless steel housing and hot-forged components to withstand high-load strain and corrosion. Built for long-lasting performance in saltwater conditions.
VERTICAL WINDLASS INSTALLATION: Under-deck setup with 4 standard 5/16" (8mm) mounting studs, washers, and nuts included. Supports max deck thickness up to 2" (50mm). Vertical rotation minimizes above-deck space, placing the motor and gearbox in the chain locker. Recommended 600W windlass for boats 40-65 ft, depending on vessel design and displacement.
WINDLASS TECHNICAL SPECIFICATIONS:
Motor Power: 1500 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 2645 Lb / 1200 Kg
Maximum Limit Working Load: 1067 Lb / 485 Kg
Working Load: 352 Lb / 160 Kg
Drop Speed: 40 m / min (131 Ft / min)
Retrieval Speed: 16 m / min (52 Ft / min)
Current Draw: 125 Amps
Circuit Breaker: 135 Amps
Dual Gypsy: Chain and Rope
Chain: 3/8 Inch (14mm) - 3 Strand
Rope: 5/8 Inch HT G4
PRODUCT NUMBER: 3444-C2
