Windlass Kit - Pacific 600 Series Vertical, 600W, 12V

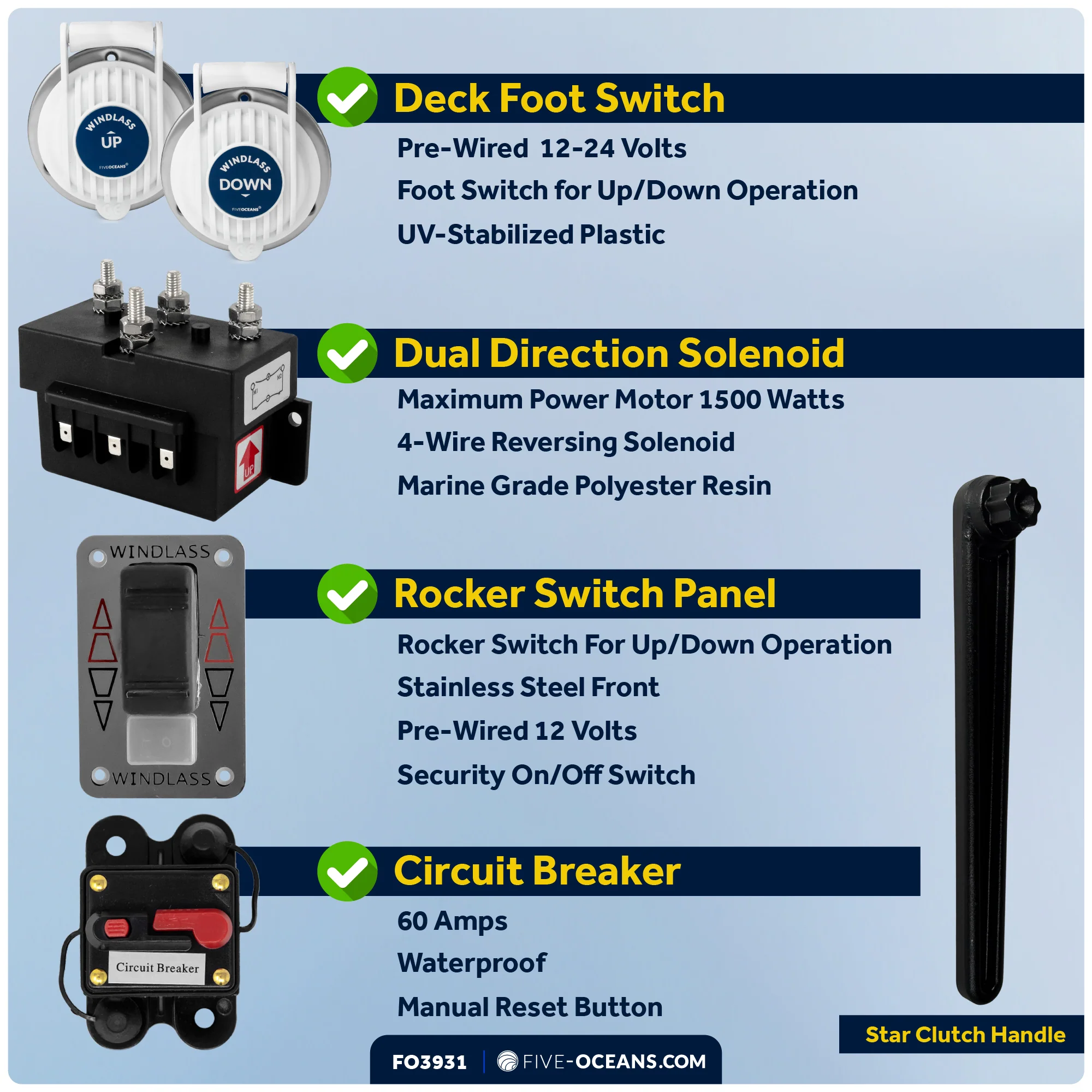

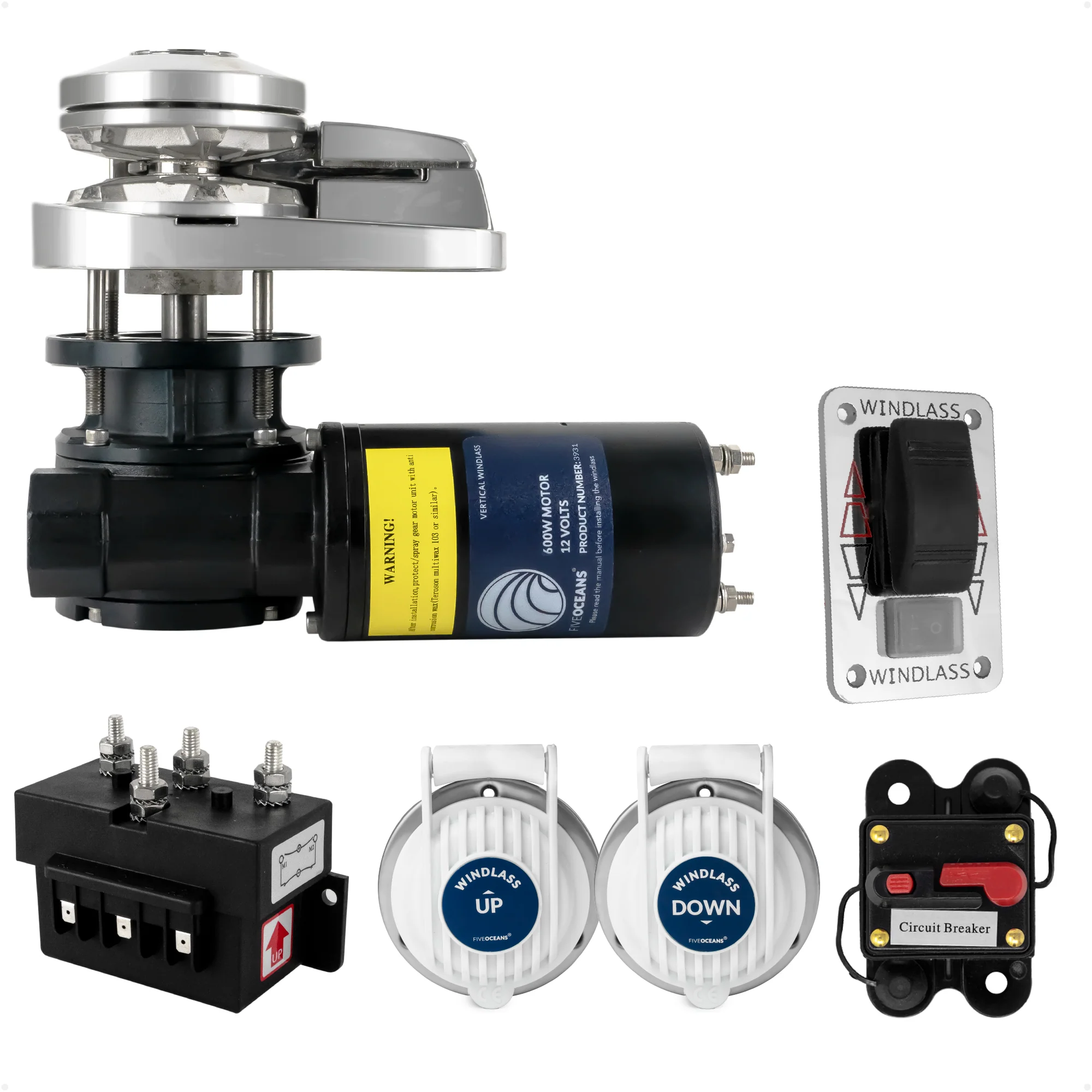

WINDLASS ANCHOR SYSTEM MODEL: Pacific 600 Series. Vertical Windlass. Motor Supply Voltage: 12V. Motor Power: 600 Watts. Gypsy: Chain and Rope. Includes 4-Wire Solenoid, 60A Circuit Breaker, Up/Down Foot Switch, Rocker Switch, Manual Top-Cap Handle, Owner Manual, Mounting Hardware, and Mounting Template.

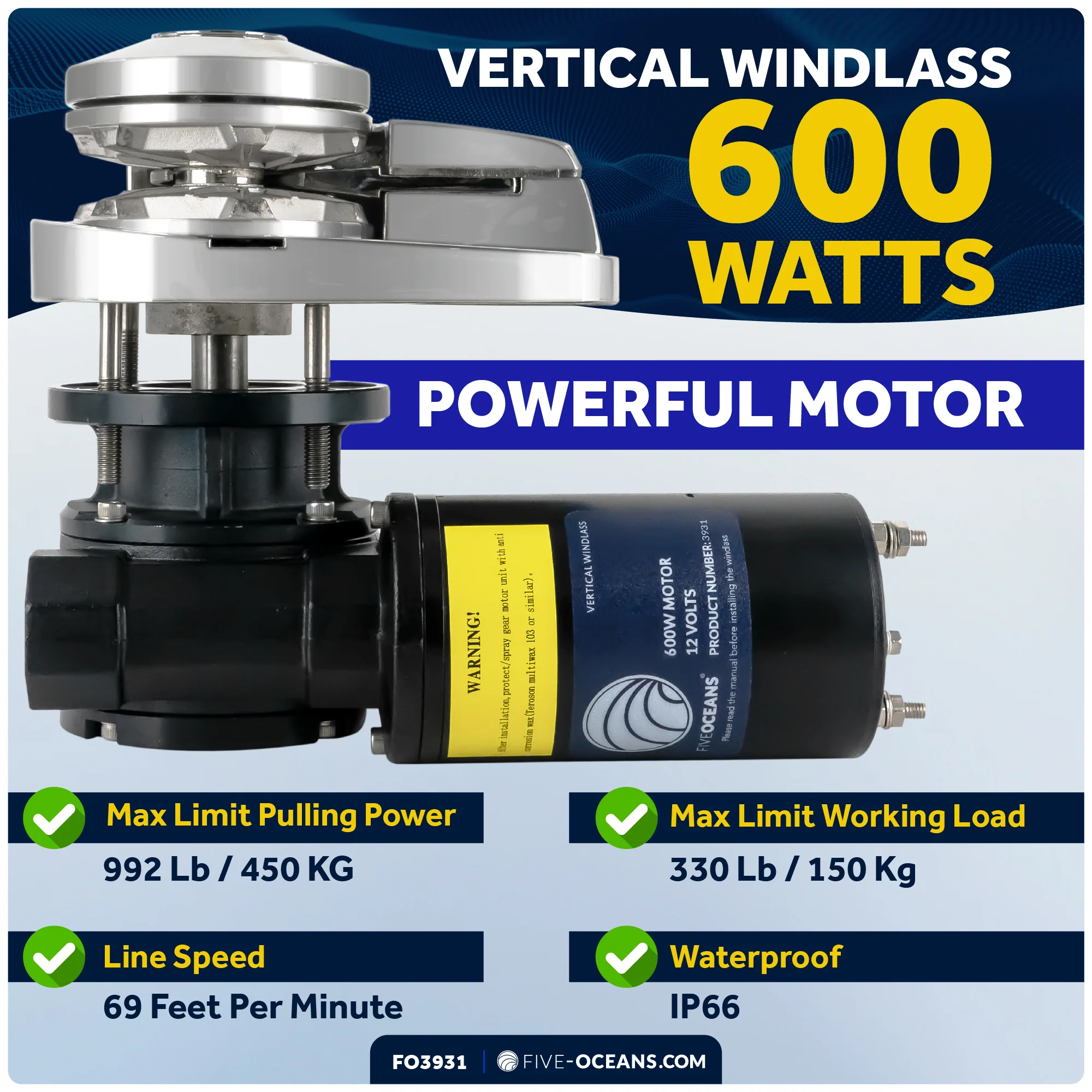

HIGH-PERFORMANCE ANCHOR MOTOR: The electric boat anchor high-power 600 watts provides a maximum pulling power of 992 Lb / 450 Kg and a maximum working load of 330 Lb / 150 Kg. Waterproof IP66 rating motor. The five Oceans Windlass model number indicates Windlass's electric motor power (Watts), not the pulling power. Electric motor power (Watts) is the most important value when choosing a windlass for your boat.
ROPE AND CHAIN ON A SINGLE GYPSY: Chain: 1/4 Inch HT G4. Rope: 1/2 Inch (12mm) - 3 Strand. We offer a complete selection of Windlass Anchor Rodes, as well as customized ones to fit your needs. The Windlass manages the rope and chain with the use of a special spring-loaded tension arm.

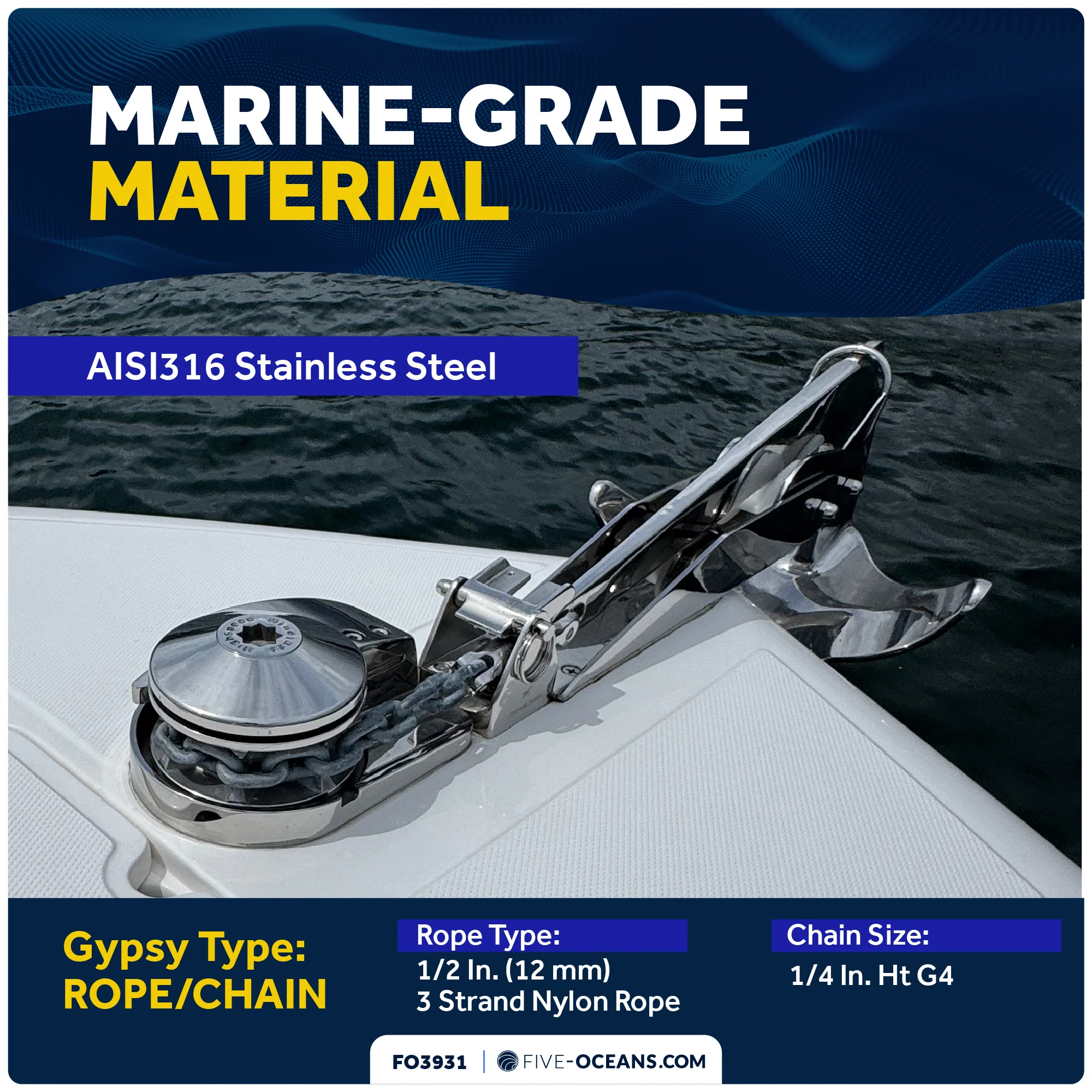

MARINE-GRADE DURABLE MATERIALS: Designed of Solid polished and anodized 316 Stainless Steel Housing. Most of the components are made by hot forging and they can withstand the high-load strain.
VERTICAL WINDLASS INSTALLATION: Under-deck setup with 4 standard 5/16" (8mm) mounting studs, washers, and nuts included. Supports max deck thickness up to 1-1/4" (32mm). Vertical rotation minimizes above-deck space, placing the motor and gearbox in the chain locker. Recommended 600W windlass for boats 20-45 ft, depending on vessel design and displacement.

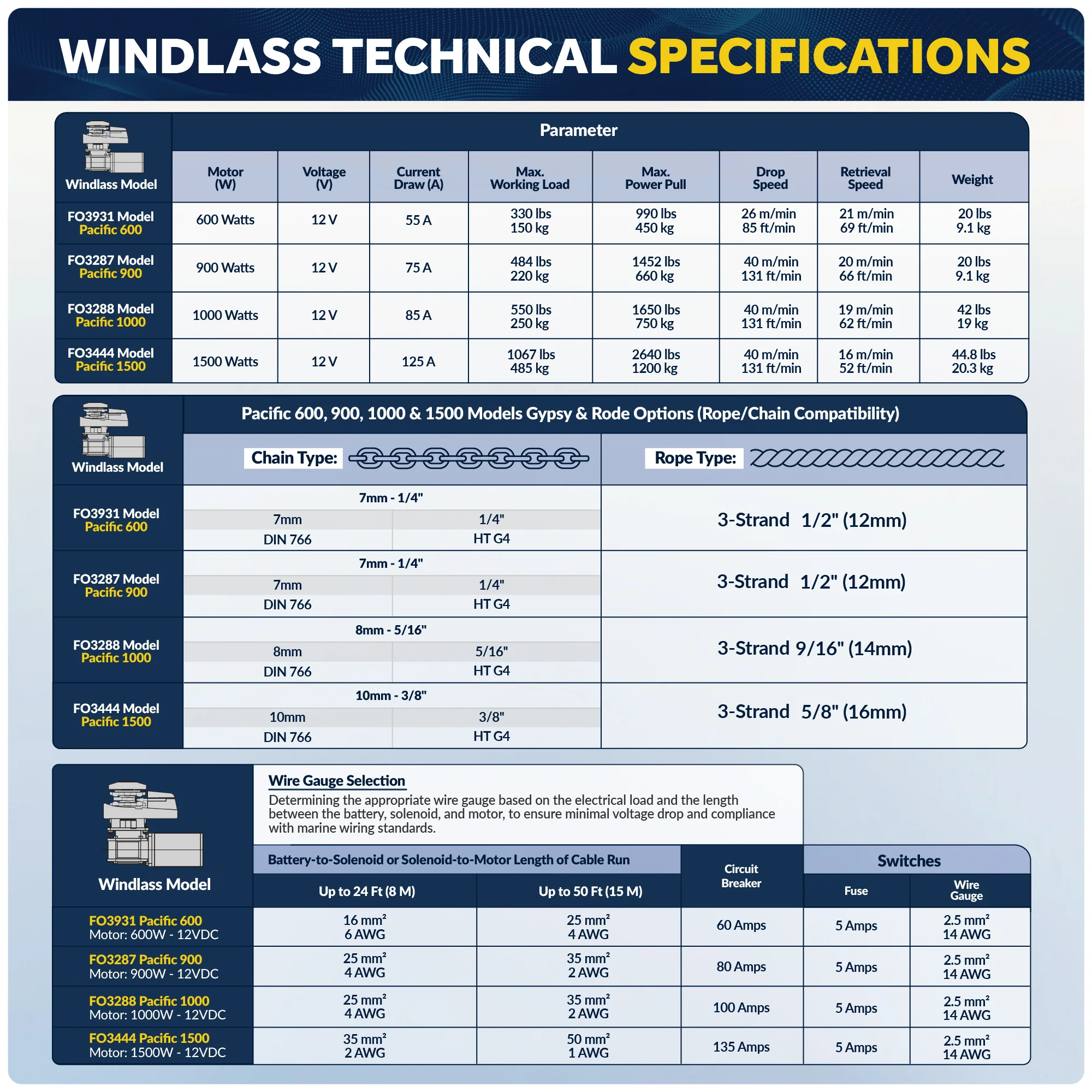

TECHNICAL SPECIFICATIONS:
Motor Power: 600 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 992 Lb / 450 Kg
Maximum Limit Working Load: 330 Lb / 150 Kg
Working Load: 110 Lb / 50 Kg
Drop Speed: 26 m / min (85 Ft / min)
Retreival Speed: 21 m / min (69 Ft / min)
Current Draw: 50 Amps
Circuit Breaker: 60 Amps
Dual Gypsy: Chain and Rope
Chain: 1/4 Inch (7 mm) HT G4
Rope: 1/2 Inch (12mm) - 3 Strand
PRODUCT NUMBER: FO3931
HIGH-PERFORMANCE ANCHOR MOTOR: The electric boat anchor high-power 600 watts provides a maximum pulling power of 992 Lb / 450 Kg and a maximum working load of 330 Lb / 150 Kg. Waterproof IP66 rating motor. The five Oceans Windlass model number indicates Windlass's electric motor power (Watts), not the pulling power. Electric motor power (Watts) is the most important value when choosing a windlass for your boat.
ROPE AND CHAIN ON A SINGLE GYPSY: Chain: 1/4 Inch HT G4. Rope: 1/2 Inch (12mm) - 3 Strand. We offer a complete selection of Windlass Anchor Rodes, as well as customized ones to fit your needs. The Windlass manages the rope and chain with the use of a special spring-loaded tension arm.
MARINE-GRADE DURABLE MATERIALS: Designed of Solid polished and anodized 316 Stainless Steel Housing. Most of the components are made by hot forging and they can withstand the high-load strain.
VERTICAL WINDLASS INSTALLATION: Under-deck setup with 4 standard 5/16" (8mm) mounting studs, washers, and nuts included. Supports max deck thickness up to 1-1/4" (32mm). Vertical rotation minimizes above-deck space, placing the motor and gearbox in the chain locker. Recommended 600W windlass for boats 20-45 ft, depending on vessel design and displacement.
TECHNICAL SPECIFICATIONS:
Motor Power: 600 Watts
Power Supply: 12V DC
Maximum Limit Pulling Power: 992 Lb / 450 Kg
Maximum Limit Working Load: 330 Lb / 150 Kg
Working Load: 110 Lb / 50 Kg
Drop Speed: 26 m / min (85 Ft / min)
Retreival Speed: 21 m / min (69 Ft / min)
Current Draw: 50 Amps
Circuit Breaker: 60 Amps
Dual Gypsy: Chain and Rope
Chain: 1/4 Inch (7 mm) HT G4
Rope: 1/2 Inch (12mm) - 3 Strand
PRODUCT NUMBER: FO3931
